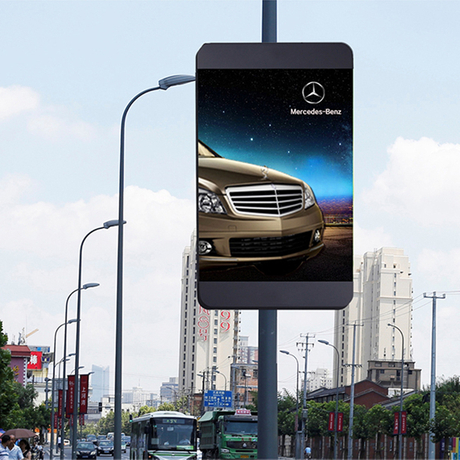

Outdoor Lamp Pole LED P6 Digital Screen Display
Product Features:
1.Vertical, Single side, standard size or customized size
2.Best view angle and high light transmittance
3.Wonderful uniformity, good color mixture and high brightness
4.Rigid and smart slim cabinet design
5. Effective and uniform heat dissipation
6. Long lifespan: 100 000Hours,it could be used for 22 years if run at 12 hours a day, 7 days a week
7. With free management content software to remote control every screens.
8. Application: Any light post, lamp pole, avenue street pillars, etc
Specifications：
| Pixel pitch(mm) | 3 | 4 | 5 | 6 | ||||||||
| Usage | Outdoor | |||||||||||
| LED type(SMD) | 1921 | 1921 | 1820 | 2727 / 3535 | ||||||||
| Module Size(mm) | 192x192 | 160x160 | 160x160 | 192x192 | ||||||||
| Module Resolution(dot) | 64x64 | 40x40 | 32x32 | 32x32 | ||||||||
| Module Pixel | 4096 | 1600 | 1024 | 1024 | ||||||||
| Pixel Density(dot/㎡) | 111111 | 62500 | 40000 | 27777 | ||||||||
| Best View Distance | >3m | >4m | >5m | >6m | ||||||||
| Frame size(W*H) mm | 768x1344 | 960x1728 | 960x1920 | 800x1600 | 960x1760 | 960x1920 | 800x1600 | 960x1760 | 960x1920 | 768x1344 | 960x1728 | 960x1920 |
| Visual size(W*H) mm | 768x1152 | 960x1536 | 960x1728 | 800x1440 | 960x1600 | 960x1760 | 800x1440 | 960x1600 | 960x1760 | 768x1152 | 960x1536 | 960x1728 |
| Screen Resolution(dot) | 256x384 | 320x512 | 320x576 | 200x360 | 240x400 | 240x440 | 160x288 | 192x320 | 192x352 | 128x192 | 160x256 | 160x288 |
| Brightnees(nits) | < 4500 | |||||||||||
| View angle | H: 160° / V: 160° | |||||||||||
| Gray scale | 16 bit | |||||||||||
| Refresh Rate | <1920Hz | |||||||||||
| Diving Mode | 1/16 Scan | 1/10 Scan | 1/8 Scan | 1/8 Scan | ||||||||
| Lifespan(H) | >100 000 | |||||||||||
| Power Comsumption(max.) | 550w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ | ||||||||
| Power Comsumption(ave.) | 180w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | ||||||||
Environment：
| Working Temperature | –20℃ ～ + 60℃ | |||||||||||
| Working Humidity | 10% ～90% | |||||||||||
| Storage Temperature | –35℃ ～ + 85℃ | |||||||||||
| Storage Humidity | 10% ～90% | |||||||||||
Material：
| Cabinet | Metal Iron | |||||||||||
| Maintenance | Back-side access | |||||||||||
| LED chip | Nationstar / King light | |||||||||||
| Power supply | Meanwell / G-energy | |||||||||||
| Controlling system | Novastar / Linsn / Colorlight / Sysolution | |||||||||||
| Installation | Outdoor / Lamp pole fixed | |||||||||||
Service:
Can provide samples for testing and approval.
Can speed up production to meet customers' market demand.
Installation instructions, customized design or colors are available.
Could print customers' LOGO on the frame with digital file from clients.
Warranty is 2 years, with extra spare parts for maintenance.
Assist customers to purchase with any other concerning products.
Why choose us?
The skilled manufacturer, experienced engineers and strict QC have earned a good reputation.
Advanced production equipments.
A professional sales team to guarantee samples quality, mass-production shipments and After-sales service.
Production capacity is the guarantee.
Shipping and payment:
Trade Terms: EXW,FOB,or CIF, DDU, etc
Payment terms: By T/T or Western Union, 30% deposit and 70% balance before shipment.
Lead-time: Around 7days depend on order quantity.
MOQ: Sample order is accepted.
Package: Bubble bag + carton for each and standard export carton to prevent any damage in transit.
Shipping: by international express as UPS, TNT, DHL, FEDEX, or by Sea.
