UNA-IP25-320
UNA
8528591090
Product Description
Indoor Fixed SMD LED Display Screen
Indoor Rental SMD Video Screen

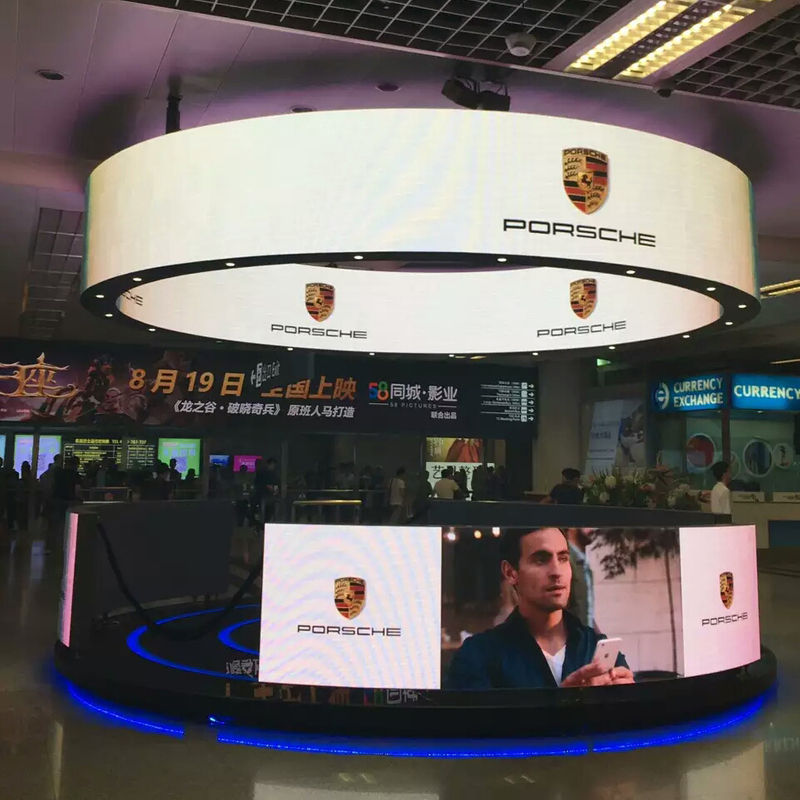

Round Hanging Video Display Flexible Digital Panel LED Screen
PRODUCT FEATURES:
1.High Quality LED Lamps
2. Hight brighenss, high Resolution & high contrast rate
3. Constant current IC & control system
4. Large area splicing, high color uniformity
5. Low light decay, super long lifespan
6. Standard Module & Cabinet
Specifications:
| Pixel pitch(mm) | 1.86 | 2 | 2.5 | 3 | 4 |
| LED type(SMD) | SMD1415 | SMD1415 | SMD2020 | SMD2020 | |
| Module Size(mm) | 320x160 | 320x160 | 320x160 | 240x120 | 256x128 |
| Module Resolution(dot) | 172x86 | 160x80 | 128x64 | 80x40 | 64x32 |
| Module Pixel | 14792 | 12800 | 8192 | 3200 | 2048 |
| Pixel Density(dots/sqm) | 289032 | 250000 | 160000 | 111111 | 62500 |
| Best View Distance | >2m | >2m | >2.5m | >3m | >4m |
| Cabinet size(W*H) mm | Customized | ||||
| Brightnees(nits) | <700 | <900 | <1000 | ||
| Usage | Indoor | ||||
| Water proof IP rate | IP31 | ||||
| View angle | H: 160° / V: 160° | ||||
| Gray scale | 16 bit | ||||
| Refresh Rate | 3840Hz | ||||
| Diving Mode | 1/43 scan | 1/32 scan | 1/16 scan | ||
| Lifespan(H) | >100 000 | ||||
| Power Comsumption(max.) | 488 | 550 | 600 | ||
| Power Comsumption(ave.) | 150 | 180 | 200 | ||
Environment
| Working Temperature | –20℃ ～ + 60℃ | ||||||||||
| Working Humidity | 10% ～90% | ||||||||||
| Storage Temperature | –35℃ ～ + 85℃ | ||||||||||
| Storage Humidity | 10% ～90% | ||||||||||
Material
| Cabinet | Die-cast aluminium | Metal Iron / Die-cast aluminium | |||||||||
| Maintenance | Front-side / Rear-side access | ||||||||||
| LED chip | Nationstar / King light | ||||||||||
| Power supply | Meanwell / G-energy | ||||||||||
| Controlling system | Novastar / Linsn / Colorlight | ||||||||||
| Installation | Indoor / Fixed installation / Wall mount / Hanging / Free standing | ||||||||||
Service:
Customers' designs are welcome, can provide samples for testing and approval.
Can speed up production to meet customers' market demand.
Installation instructions, customized design or colors are available.
Could print customers' LOGO on the frame with digital file from clients.
Assist customers to purchase with any other concerning products.
Can send parts for replacement if quality defective belong to ours.
Why choose us?
The skilled manufacturer, experienced engineers and strict QC have earned a good reputation.
A professional sales team to guarantee samples quality, mass-production shipments and after-sales service.
Advanced production equipments.
Production capacity is the guarantee.
2 Year Products quality guaranteed with extra spare parts,online support, On-Site assistant support if needed.
We can tailor each indoor LED digital signage base on your installation site needs.
Shipping and payment:
Trade Terms: EXW,FOB, CFR or CIF
Payment terms: By T/T or Western Union,50% deposit and 50% balance before shipment.
Lead-time: Around 7days depend on order quantity.
MOQ: Sample order is accepted.
Package: Bubble bag + Foam angle bead + PlyWooden box
Shipping: by international express as UPS, TNT, DHL, FEDEX, or by Sea.
